FD Series

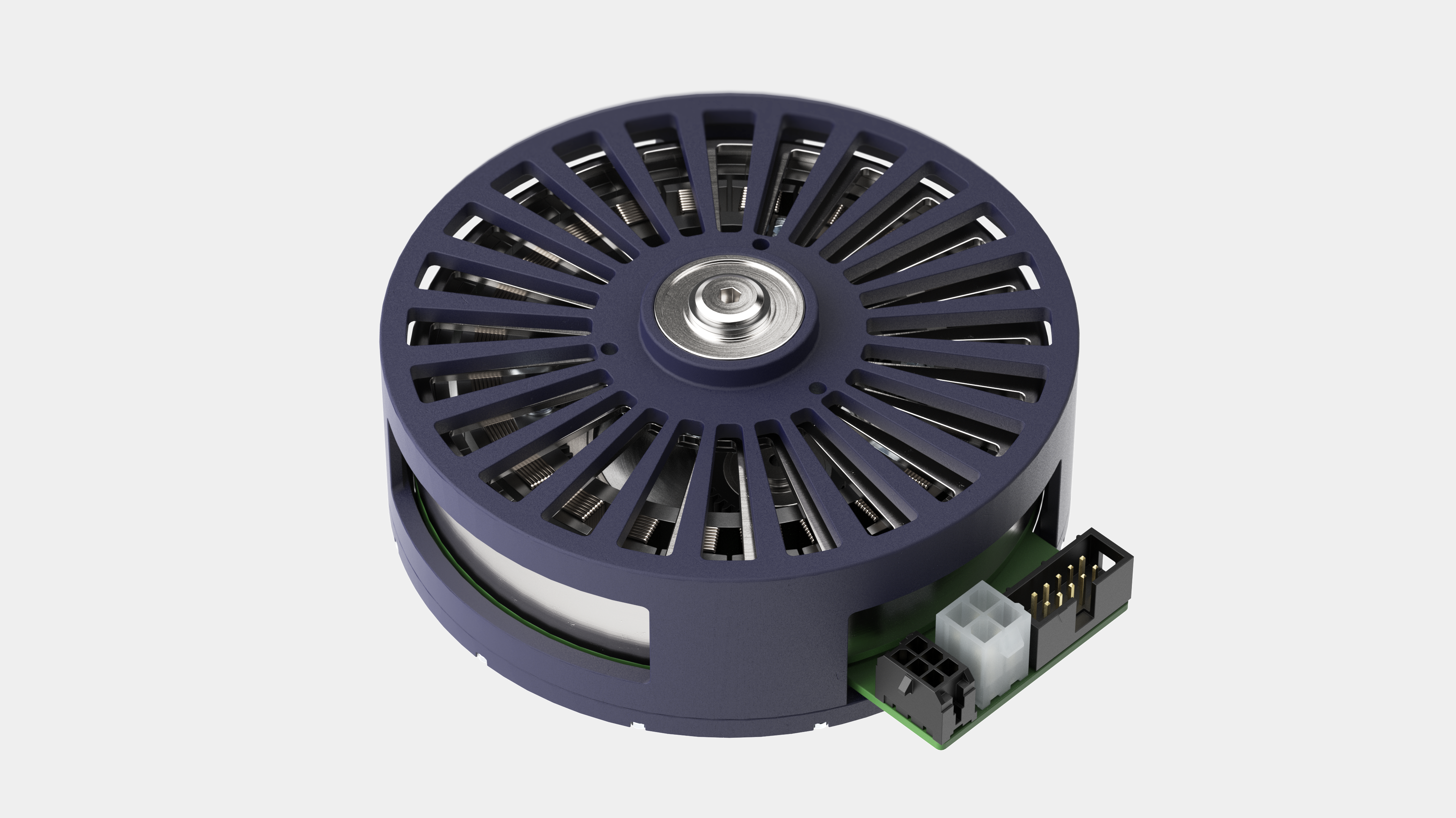

FD-90-15-g

The most powerful and dynamic servo motor

Order now

Product Descriptions

High Torque Density

Achieving the world's highest torque density based on magnetic fields through special magnetic materials and design optimization

Low Cogging Torque & Pulsation

Realization of low cogging torque and low ripple through technology implementing ideal sinusoidal back-electromotive force in stator and rotor

Smooth Safety

Realization of a flexible and safe joint design resilient to external impacts through high backdrivability

Specification

Rated Voltage

48V

Rated Power

300W

No load Speed

150rpm

Rated Speed

135rpm

Torque Constant

2800mNm/A

Rated Torque

19.6Nm

Instantaneous Torque

40Nm

Torque Density

27.22Nm/kg

Weight

720g

Gear Ratio

6:1

Suitable for all applications
